- 2-pole
- One-piece body
- Jab-in™ wire hook-up
- Ceramic construction
utilization temperature to 1000°f(538°c) - Suitable for vacuum use
![ceramic plug for wire in view | Marlin Manufacturing ceramic plug for wire in view | Marlin Manufacturing](https://marlinmfg.com/wp-content/uploads/ceramic-plug-for-wire-in-view.png)
![Ceramic Plug with Upwards Orientation | Marlin Manufacturing Ceramic Plug with Upwards Orientation | Marlin Manufacturing](https://marlinmfg.com/wp-content/uploads/Ceramic-Plug-with-Upwards-Orientation.png)
Wires Jab-In™ for quick reliable hook-up of wires to 14 gage (0.064″). Strip approximately 1/2″
![Ceramic plug with fibrous wire | Marlin Manufacturing Ceramic plug with fibrous wire | Marlin Manufacturing](https://marlinmfg.com/wp-content/uploads/Ceramic-plug-with-fibrous-wire.png)
Standard Full-Size Mounting Hardware fits both Plug and Jack
- Soft insulated thermocouple alloy wire can be strain relieved and held secure via optional adapters
- MIMS (Mineral Insulated Metal Sheath) Thermocouple can be secured via optional crimp or copression adapters

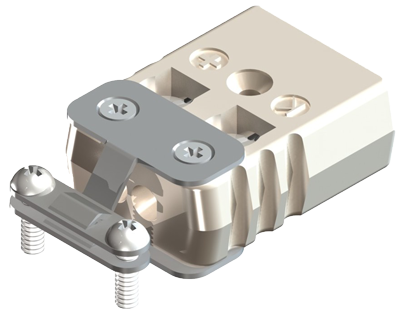

![Wire Clamp 1 | Marlin Manufacturing Wire Clamp 1 | Marlin Manufacturing](https://marlinmfg.com/wp-content/uploads/Wire-Clamp-1-150x120.png)

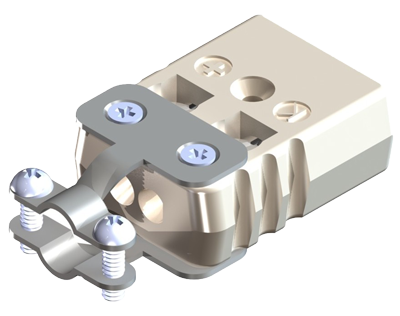

![Ceramic Plug with cable clamp | Marlin Manufacturing Ceramic Plug with cable clamp | Marlin Manufacturing](https://marlinmfg.com/wp-content/uploads/Ceramic-Plug-with-cable-clamp-150x119.png)

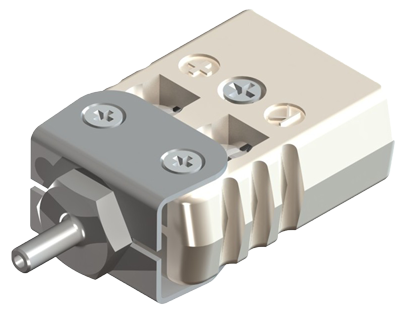

![Ceramic with Crimp Adapter | Marlin Manufacturing Ceramic with Crimp Adapter | Marlin Manufacturing](https://marlinmfg.com/wp-content/uploads/Ceramic-with-Crimp-Adapter-150x118.png)

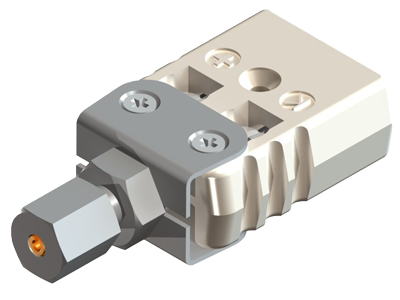

![Ceramic with Ciompression adapter | Marlin Manufacturing Ceramic with Ciompression adapter | Marlin Manufacturing](https://marlinmfg.com/wp-content/uploads/Ceramic-with-Ciompression-adapter-150x113.png)
APPLICATION:
Intended for convenient plug-in connections of thermocouples and thermocouple
extensions.
PURPOSE:
To maintain the integrity of thermocouple circuits by utilizing proper thermocouple
alloys and wiring techniques.
DESCRIPTION
- 2-pole – conforms to astm e 1129 dimensional requirements
- Standard (round pins: tubular or solid)
- Compatible alloy circuitry
- One-piece body
- Jab-in wire hook-up: ss components ( up to 14 gage (0.064″) )
- Ceramic construction
Utilization Continuous Use Temperature to 1000°F (538°C)
(Limitation of Spring Contacts)
Intermittent Temperature Limit 1200°F (649°C)
(Depending On Atmosphere)
Suitable for Vacuum use
Approximate Ceramic Melting Temperature (N/A—WILL NOT MELT)
- White ceramic color
- Thermocouple type designation on body
- Polarity molded into body
![Full Size Standard 2 Pole Connectors Diagram 1 | Marlin Manufacturing Full Size Standard 2 Pole Connectors Diagram 1 | Marlin Manufacturing](https://marlinmfg.com/wp-content/uploads/Full-Size-Standard-2-Pole-Connectors-Diagram-1.png)
STANDARD THERMOCOUPLE CONNECTOR CERAMIC JAB-IN™
