Sensors - Industrial Thermocouples - Base Metal Thermocouple Elements

ELEMENT TYPE DESCRIPTION
Bare bare element
2-Hole Ceramic Insulated 2-Hole Ceramic Insulated
4-Hole Ceramic Insulated 4-Hole Ceramic Insulated
Ball & Socket
Ceramic Insulated		 Ball & Socket Ceramic Insulated
Angle Angle
    EXAMPLE:
  • 08-K-V0-18"
  • 8 ga., Type K Thermocouple Element,
  • 2-Hole Ceramic Insulated, 18" long
  • with welded junction
BASE METAL THERMOCOUPLE ELEMENTS
Wire Gage Standard1 Insulator Type Element Type Type J Thermocouple
Part No.		 Type K Thermocouple
Part No.
8 NONE BARE 08-J-00-"L" (length) 08-K-00-"L" (length)
14 14-J-00-"L" (length) 14-K-00-"L" (length)
20 20-J-00-"L" (length) 20-K-00-"L" (length)
8 2V081-0 2-Hole Ceramic
Insulated		 08-J-V0-"L" (length) 08-K-V0-"L" (length)
14 2V141-1 14-J-V1-"L" (length) 14-K-V1-"L" (length)
20 2R201-1 20-J-R1-"L" (length) 20-K-R1-"L" (length)
14 4R141 4-Hole Ceramic
Insulated		 14-J2-R4-"L" (length)
(Dual Thermocouple)		 14-K2-R4-"L" (length)
(Dual Thermocouple)
8 1B08 Ball & Socket
Ceramic Insulated		 08-J-S1-"L" (length) 08-K-S1-"L" (length)
14 1B14 14-J-S2-"L" (length) 14-K-S2-"L" (length)
20 1B20 20-J-S3-"L" (length) 20-K-S3-"L" (length)
8 2V081-0/1B08 Angle2 08-JA-V0-"L" (length) 08-KA-V0-"L" (length)
14 2V141-1/1B14 14-JA-V1-"L" (length) 14-KA-V1-"L" (length)
20 2R201-1/1B20 20-JA-R1-"L" (length) 20-KA-R1-"L" (length)
NOTES:
1. Part numbers reflect Marlin standard construction. For different insulator other than shown, substitute insulator code for element shown in insulator table (e.g. for element with small 2-hole oval ceramics, 08-K-V2-18").

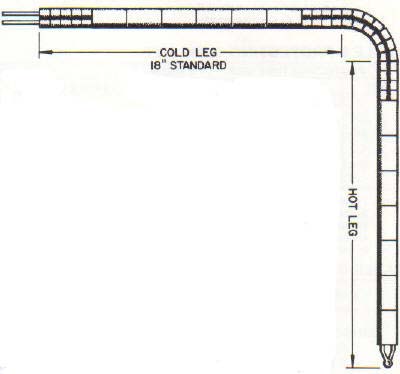

2. Angle type elements include 18" of cold leg. For other than 18" insert length after "A" code. (e.g. 08-KA(24")-V0-18").
3. Welded junctions are standard. For twisted and welded junction add suffix "W". (e.g. 08-K-V0-18"-W).

For more information regarding Industrial Thermcouples
Please Consult your Marlin Catalog.
