Sensors - Plastic Industry Thermocouples - Bayonet Thermocouple

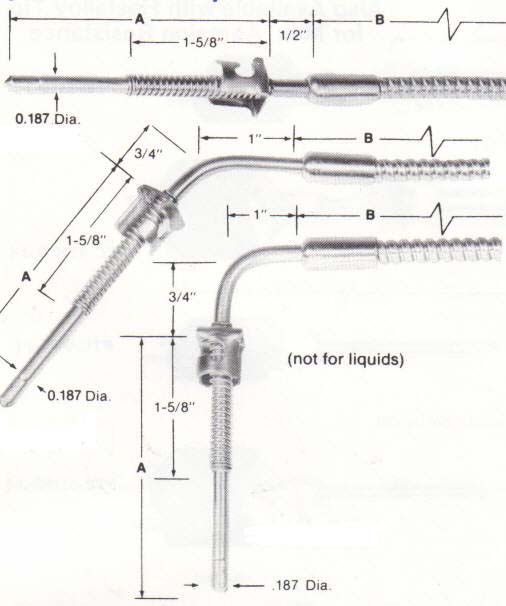

Bayonet TC



STANDARD FEATURES

  • Sensitive Tip 0.187 Dia. (not for use in liquids)
  • Type J Thermocouple with Grounded Junction Standard
  • Single Element: 20 ga. Stranded Thermocouple Wire
    with Fiberglass insulation and SS armor tubing
  • Dual Element: 24 ga. Stranded Thermocouple Wire
    with Fiberglass insulation and SS armor tubing
  • Stainless Steel Overbraid also available
    (add "S" to Catalog No.)
  • Fits Standard Bayonet Type Adapters
  • For Temperatures to 900°F (482°C)
  • Rigid "B" length available (specify rigid "B")
  • Stainless Steel Construction
  • Other thermocouple types available (i.e. K,T,E)
  • Standard "A" Length = 3-1/2"
    (available to 8 inches, in one-half inch increments)
  • Standard "B" Length = 48 inches

Catalog Number Terminal Type Terminal Description
Single Element
PTC-3010
PTC-3011
PTC-3012		 BX3 BX Connector
P15 Standard TC Plug
F15 Standard TC Jack
Catalog Number Terminal Type Terminal Description
Dual Element
PTC-3010-D
PTC-3011-D
PTC-3012-D		 BX3 BX Connector
P15 Standard TC Plug
F15 Standard TC Jack

TO ORDER:

  1. Give Marlin Catalog No. [e.g. PTC-3010]
  2. Specify ANSI Thermocouple Type [e.g. PTC-3010-J]
  3. Specify Terminal Type [e.g. PTC-3010-J-BX3]
  4. Specify ("A") Length [e.g. PTC-3010-J-BX3-4"]
  5. Specify ("B") Length [e.g. PTC-3010-J-BX3-4"-48"]

For more information regarding Plastic Industry Thermcouples,

Please consult your Marlin Catalog.
