Sensors - Plastic Industry Thermocouples - Washer Type Thermocouple

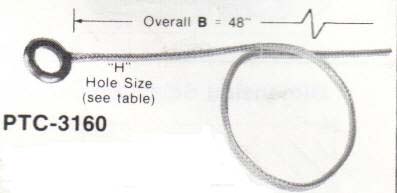

Washer TC


STANDARD FEATURES

  • Nickel Plated Brass Washer
    (14 & 18 mm plated copper)
  • SS Overbraid Strain Relief
  • Type J Single Element Thermocouple, Grounded Junction, Standard
  • Stranded thermocouple wire with SS overbraid
  • For Temperatures to 900°F (482°C)
  • Standard "B" Length of 48 inches
  • Other thermocouple types available (i.e. K,T,E)
Catalog Number Terminal Type Terminal Description
PTC-3160 BX3 BX Connector
P15 Standard TC Plug
F15 Standard TC Jack


"H"
Hole Size
3/16 Bolt
(also fits #8 & #10)
1/4 Bolt 3/8 Bolt 1/2 Bolt 14mm Bolt 18mm Bolt
Actual ID 0.193 0.255 0.380 0.510 0.560 0.730
Actual OD 0.425 0.431 0.815 1.060 0.810 1.060
Thickness "T" 0.118-0.123 0.118-0.123 0.118-0.123 0.095-0.120 0.156 0.156
Wire Gauge 20 20 20 20 20 20

TO ORDER:

  1. Give Marlin Catalog No. [e.g. PTC-3160]
  2. Specify ANSI Thermocouple Type [e.g. PTC-3160-J]
  3. Specify Terminal Type [e.g. PTC-3160-J-BX3]
  4. Specify Hole Size ("H") [e.g. PTC-3160-J-BX3-18mm]
  5. Specify Thermocouple Overall Length ("B") [e.g. PTC-3160-J-BX3-18mm-48"]

For more information regarding Plastic Industry Thermcouples,

Please consult your Marlin Catalog.
